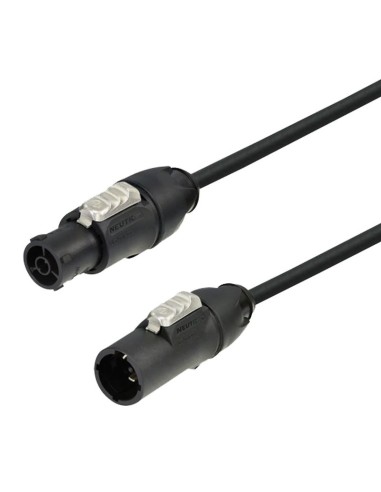

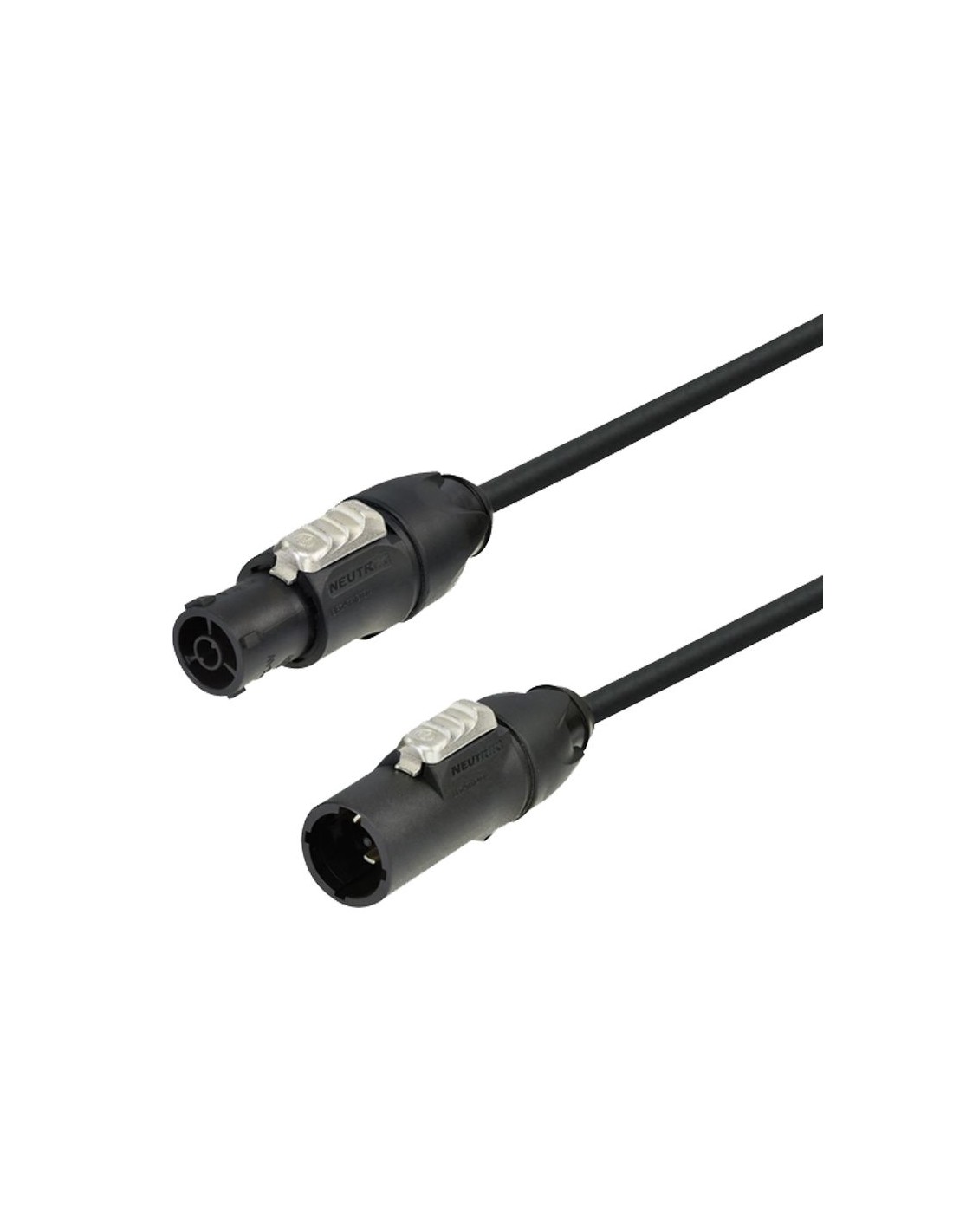

Câble PowerCON True Top 3G1.5 IP 65 150cm
Avec ses connecteurs Neutrik Powercon True top (NAC3FX-W-Top et NAC3MX-W-TOP), les câbles ont un indice de protection IP65 qui garantit une protection parfaite contre les jets d'eau de toutes directions à la lance et contre les poussières. Nous fabriquons nos câbles avec les meilleurs connecteurs et le meilleur câble du marché. Nous vous offrons également le meilleur rapport qualité/prix.
Technical Information NAC3MX-W-TOP
| Product | |
| Title | NAC3MX-W-TOP |
| Electrical | |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | 0,1 GΩ (after damp heat test IEC 68-2-30) |
| Number of electronical contacts | 2 + PE |
| Rated current per contact | 16 A rms (USA: 20 A) |
| Rated voltage | 250 V ac |
| Mechanical | |
| Cable O.D. | 6 - 12 mm |
| Lifetime | > 5000 mating cycles |
| Wiresize | 1.0 - 2.5 mm² |
| Wiresize | 12 AWG |
| Material | |
| Contact plating | 2 µm Ag |
| Contacts | CuNi1Si0.2 |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | ZuAl4Cu1 |
| Shell | Polyamide (PA 6.6 30 % GR) |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Flammability | UL 94 V-0 |
| Protection class | IP65, UL50E enclosure type 4 (mated) |
| Temperature range | -30 °C - +80 °C |
Technical Information NAC3FX-W-Top
| Product | |
| Title | NAC3FX-W-TOP |
| Electrical | |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 0,1 GΩ (after damp heat test IEC 68-2-30) |
| Number of electronical contacts | 2 + PE |
| Rated current per contact | 16 A rms (USA: 20 A) |
| Rated voltage | 250 V ac |
| Mechanical | |
| Cable O.D. | 6 - 12 mm |
| Lifetime | > 5000 mating cycles |
| Wiresize | 1.0 - 2.5 mm² |
| Wiresize | 12 AWG |
| Material | |
| Contact plating | 2 µm Ag |
| Contacts | Bronze (CuSn0.2) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | ZuAl4Cu1 |
| Shell | Polyamide (PA 6.6 30 % GR) |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Flammability | UL 94 V-0 |
| Protection class | IP65, UL50E enclosure type 4 (mated) |
| Temperature range | -30 °C to +80 °C |
- Section
- 3G1.5
CORNEU230IPX015M
